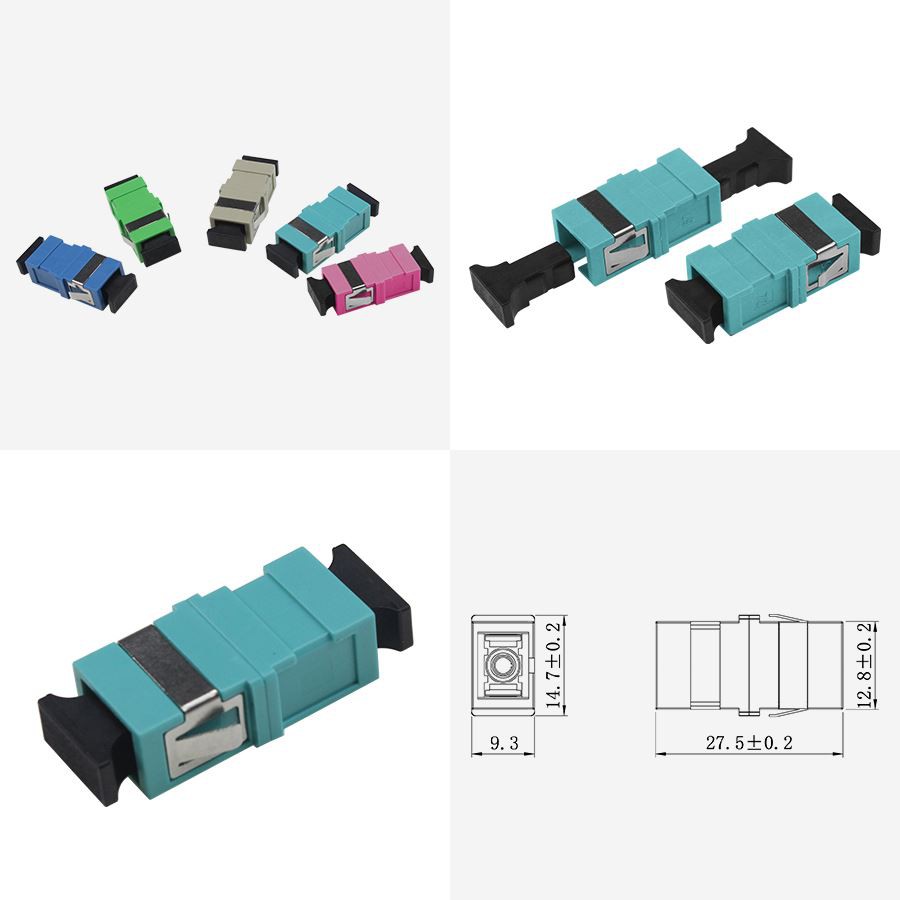

Simplex SC UPC OM3 Adapter Coupler
Simplex SC Adapter is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
By linking two connectors precisely, Simplex SC Adapter allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, Simplex SC Adapter have the merits of low insertion loss, good interchangeability and reproducibility.
And each Simplex SC Adapter is functionally tested before shipping.
Quick Details
Adapter Type: SC
Body Style: Simplex
Connector Polish Type: PC
Color: Aqua
Connector Fiber Mode: multimode
Insertion Loss: ≤0.2dB
Durability: >500times
Mounting Type: Without Flange
Fiber Optic Adapter,without flange,welding type,single mode,single core,plastic type.

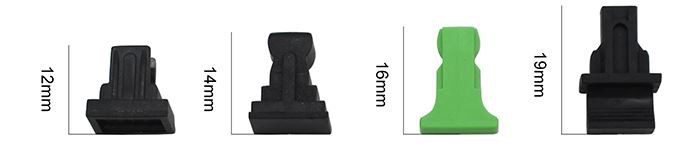

Simplex SC Adapter has a variety of dust caps to choose from, and the color of the dust cap can be customized
Product Features
⊙ Standardization and Uniformization of Metal Casing
⊙Zirconia or Bronze Sleeve
⊙Precision mechanical dimension
⊙Excellent mechanical endurance
⊙Customer defined specifications
⊙Low insertion loss ,high return loss
⊙Good repeatability and exchangeability
Application
⊙ Telecommunication
⊙ CATV
⊙ LAN & WAN
⊙ Network
⊙ Broadband
⊙ FTTP
| Parameter | SC Adapter | |||
| SM | MM | |||
| PC | UPC | APC | PC | |
| Insertion loss | ≤0.2 dB | ≤0.2 dB | ≤0.2 dB | ≤0.2 dB |
| Alternation loss | ≤0.2 dB | |||
| Repeatability | ≤0.2 dB | |||
| Durability | The change of 500 interpolation times is less than 0.2dB | |||
| Working temperature | -40~+85°C | |||
| Storage temperature | -40~+85°C | |||
Packaging scheme
Adapter packaging scheme one
1. Packaging quantity requirements of blister boxes
Finished adapter 25pcs/box, each 8 boxes (200PCS) use rubber bands on both sides
Tie each
Blister box for packaging
2. Inner box and outer box
The inner box size is 350mm*240mm*190mm, with 30 boxes*25PCS=750PCS
The two outer box sizes are: 490mm*365mm*220mm, with 2 inner boxes totaling 1500PCS
535mm*365mm*430mm, with 4 inner boxes totaling 3000PCS
Confirm the size of the outer box according to the actual quantity of the customer's order.
Adapter packaging scheme two
1. The packaging quantity requirements of ziplock bags
Finished adapter 100pcs/bag
Ziplock bag for packaging
2. Outer box
The two outer box sizes are: 490mm*365mm*220mm, 15 packs totaling 1500PCS
535mm*365mm*430mm, 30 packs total 3000PCS
Confirm the size of the outer box according to the actual quantity of the customer's order.
Similar product

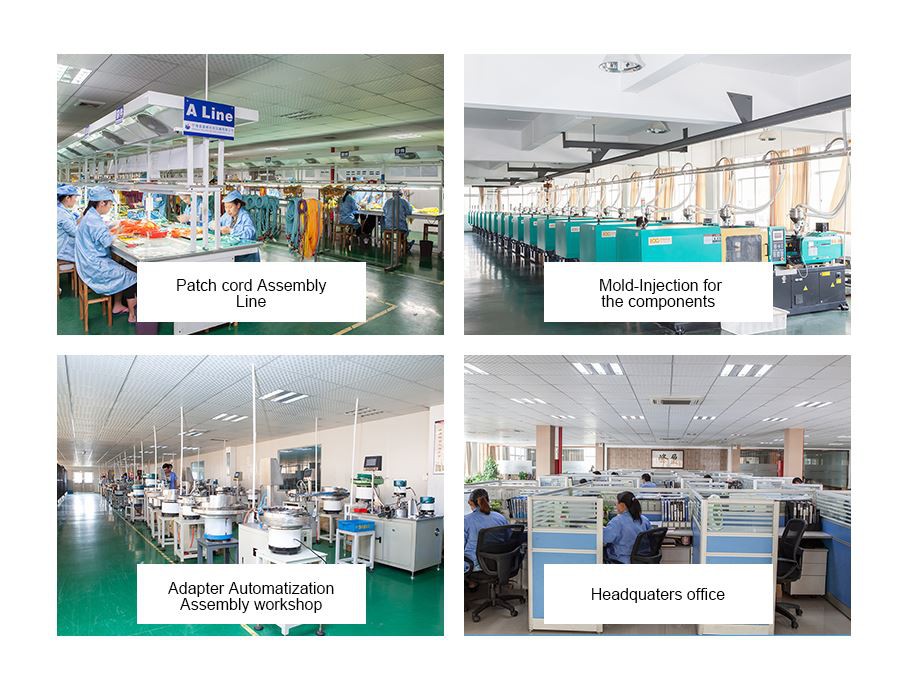

Company Show
